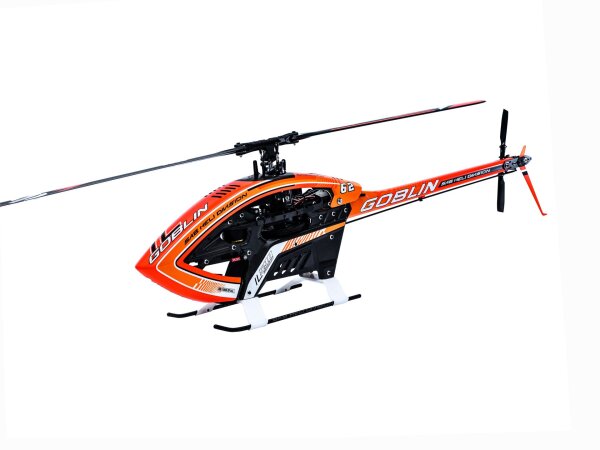

SAB ilGOBLIN 590 [SG590] – THE UNIQUE EVOLUTION OF GOBLIN CONTINUES
This completely new generation of RC helis has already generated enormous interest during numerous preview presentations. Without a doubt, the ilGOBLIN 590 was the undisputed star at IRCHA. And now the time has come: you can order your ilGOBLIN 590 directly from Heli Shop.
How does the ilGOBLIN 590 fly?
The question regarding its flight characteristics can be answered quickly and simply as follows: the system RPM determines its potential.
The highest priority was placed on linear control behavior, which increases in steering intensity analogously to the system RPM without ever feeling hectic or over-correcting. In practice, it can be said that the flight characteristics and the potential of the ilGOBLIN 590 are directly proportional to the rotor speed.
Thanks to its outstanding precision as well as the chosen linkage and dampening characteristics, this model covers the entire spectrum from hard 3D to a relaxed after-work flight.
The visibility and orientation tracking in flight is unmatched by current standards. Both the contouring of the ilGOBLIN 590 and the optimally placed contrast areas complement each other perfectly. In addition, a matte neon paint is used as the base coloration, which (unlike glossy finishes) largely prevents light reflection and glare.
Effortlessly through every maneuver and flight figure
Thanks to a further optimized layout of all main components, an enhanced mass centralization close to the overall center of gravity was achieved. This sophisticated arrangement of mass makes the ilGOBLIN 590 more neutral and stable in its flight behavior than any of its predecessors. Furthermore, because of this mass centralization, smaller cyclic deflections are required overall, providing a crucial foundation for the linear control behavior described Above.
Data Sheet
Airframe Weight: 1820 g (with main and tail blades; no motor, no electronics)
Tail Boom: High-Rigidity Compressed Carbon
Frame: 1.2 mm High-Density Compressed Carbon
Transmission: Overbuilt "Eternal" Gearbox with oversized OWB directly on the main shaft
Shafts: Main 10 mm | Tail 6 mm
Battery: Rear-loading tray system
Main Rotor Diameter: 1,242 mm (with 580 mm blades)
Main Blade Length: 550 – 590 mm
Cyclic Servos: 3x Mini (3x Standard option available)
Tail Servo: Standard size
6S Setup: Motor 4025-1100 KV | Battery 5000–6000 mAh
12S Setup: Motor 4025-560 KV | Battery 3000–4000 mAh
