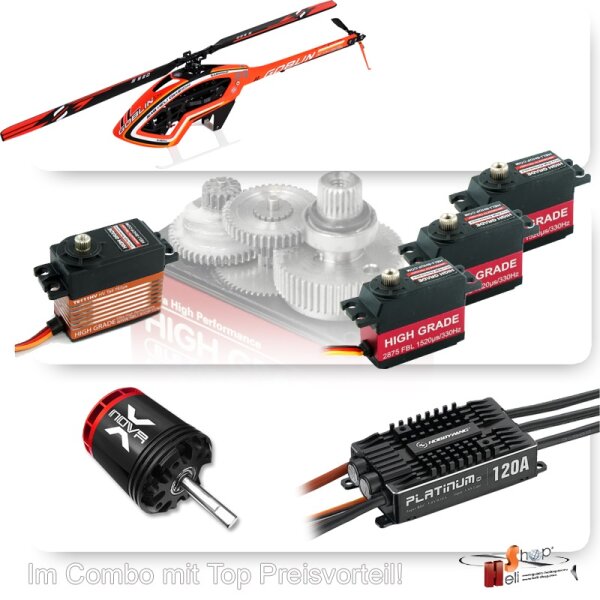

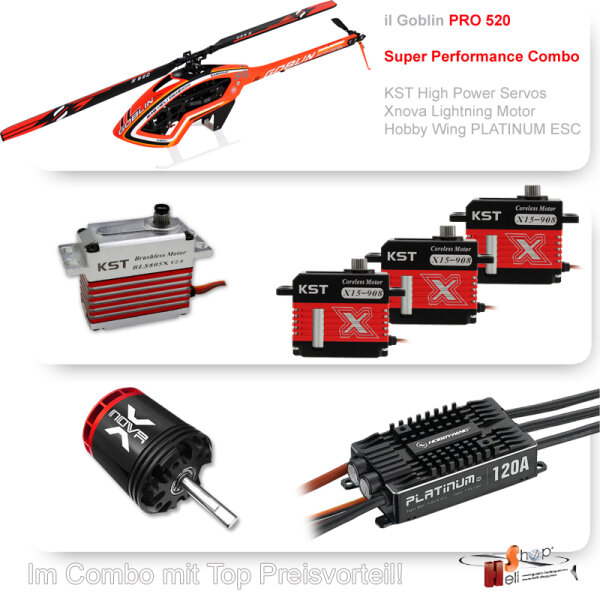

SAB ilGOBLIN PRO 520
This model is based on the design of the GOBLIN RAW 500 with many shared spare parts, but with several important updates and improvements, including new 520 mm main blades and 82 mm tail blades.
Specs.
AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)
Main rotor diameter: 1220 mm (with 520 mm main blades)
Main blade length: 480 to 530mm
Tail rotor diameter: 222 mm (with 82 mm tail blades)
Tail blade length: 80 to 85 mm
Cyclic Servos: Mini size 35mm
Tail Servo: Mini size 35mm/Standard size 40mm
Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)
Tail Rotor Ratio: 3.88.1
Main shaft: 8 mm, Tail shaft: 5 mm
Molded carbon tail boom
Typical motor: 6S, 800/900 KV
Battery room: 48x48x150mm
