Specifications
RTF weight without battery 1824g
Main rotor diameter 1180mm (with 500mm blades)
Length of the tail blades 80mm
Mini size cyclic servos (35mm)
Mini tail servo (35mm)
Maximum dimensions of the battery 48x48x150mm
Recommended battery 6S 3300/3700 mAh
Recommended battery weight 550-600g
Recommended ESC 6S-120A
Motor size 4020 (800-900Kv)
Main Features
Quick release battery tray with integrated connectors
Zytel HTN resin blade grip arms (sacrificial)
It is not necessary to remove the canopy to replace the batteries
Main ratio 1:5/6
Tail ratio 4:1
Helicopter Main Data

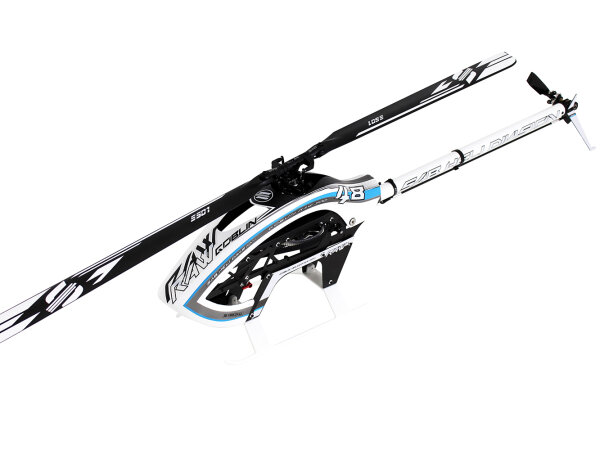

Configuration 500
Available P/N SG520
Main rotor diameter 1180mm (with 500mm Main Blades)
Main blade length 501mm
Tail rotor diameter 218mm (with 80mm Tail Blades)
Tail blade length 80mm
Main shaft diameter 8mm
Tail shaft diameter 5mm
Weight 1824g w/o battery
Helicopters Secondary Data
Cyclic Servos Mini Size 35mm
Tail Servo Mini Size 35mm
Typical speed controller 6S 120A
Maximum motor size 52 mm diameter x 55 mm height
Motor KV 4020 (800-900Kv)
Battery compartment 48x48x150mm
